Cincinnati Chapel Restored with GAF Silver Pledge System

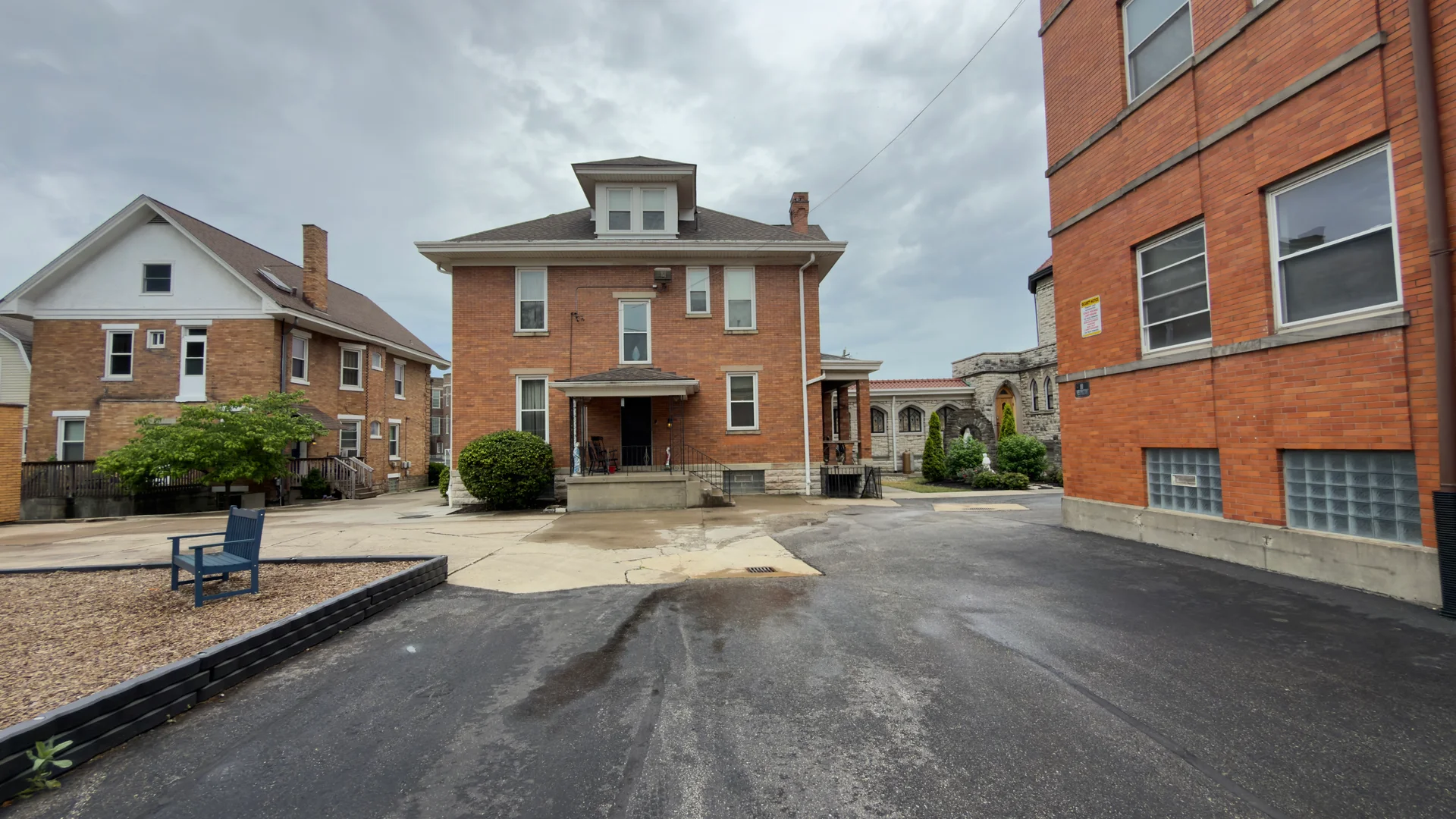

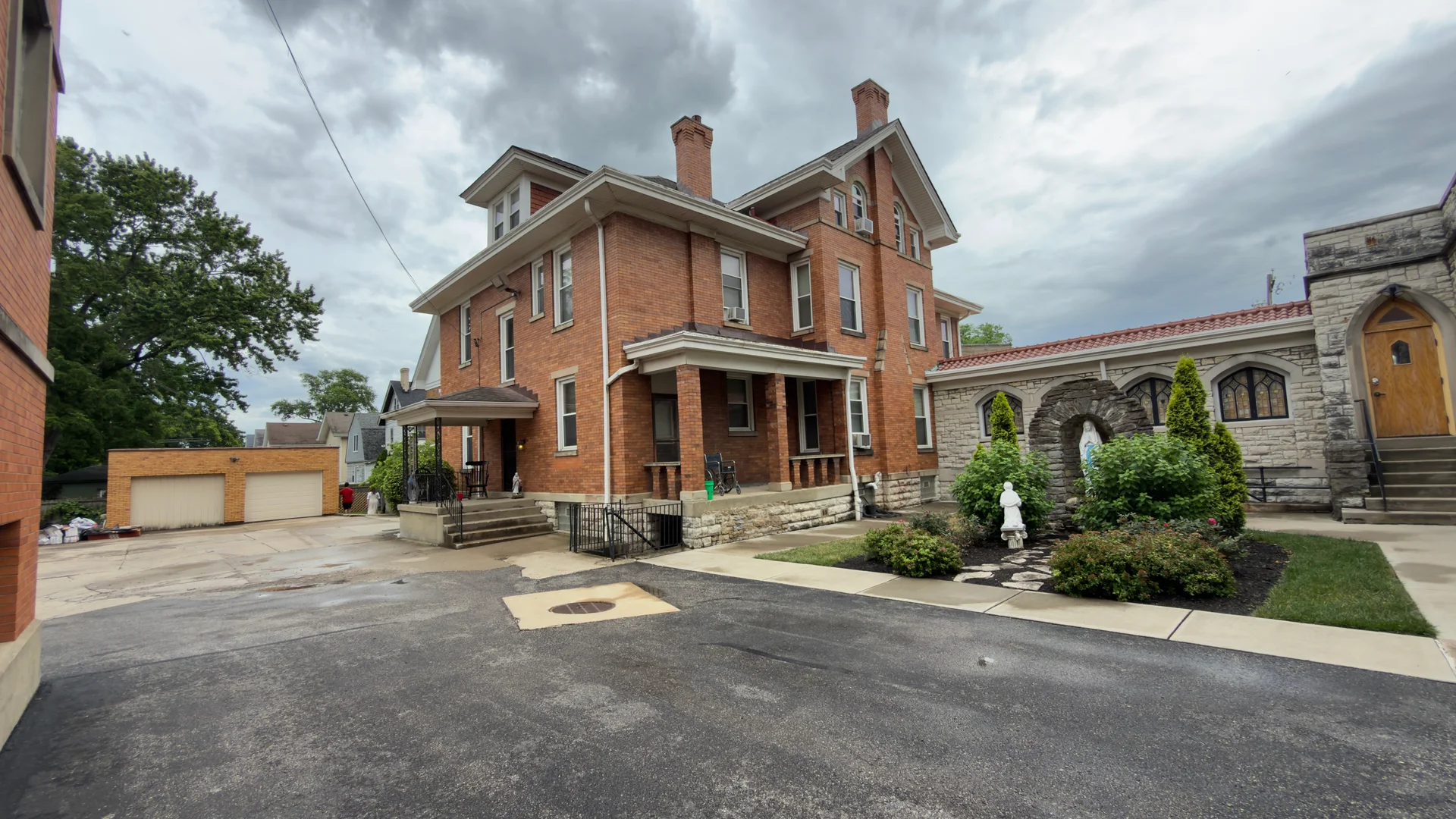

St. John Bosco Chapel is a brick and stone building in Cincinnati, a stone arched chapel wing and a brick rectory set around a courtyard. Its clay tile roof had used up its life, and the damage showing up inside was the roof's doing rather than the building's.
Tile that old can be sound to look at and finished as a working roof, and the people responsible for the chapel understood that continuing to repair it was buying time at increasing cost. The decision was to re-roof the building with a full GAF Timberline HDZ system instead: new flashing at the chimney, new metal along the brick parapet wall above the courtyard, and the accumulated small corrections around the roof that years of patching had worked around rather than solved.
The chapel keeps its brick, its stone arches and its courtyard. The part of it that had failed is the part that was replaced, and the building is watertight for the people who use it and the people who will look after it next.
St. John Bosco Chapel is a brick and stone building in Cincinnati, a stone arched chapel wing and a brick rectory set around a courtyard. Its clay tile roof had used up its life, and the damage showing up inside was the roof's doing rather than the building's.
Tile that old can be sound to look at and finished as a working roof, and the people responsible for the chapel understood that continuing to repair it was buying time at increasing cost. The decision was to re-roof the building with a full GAF Timberline HDZ system instead: new flashing at the chimney, new metal along the brick parapet wall above the courtyard, and the accumulated small corrections around the roof that years of patching had worked around rather than solved.
The chapel keeps its brick, its stone arches and its courtyard. The part of it that had failed is the part that was replaced, and the building is watertight for the people who use it and the people who will look after it next.
Technical Discussion
Roofing against a parapet wall
The chapel wing and the rectory meet the courtyard along a brick parapet, a wall that rises above the roof instead of stopping under it. On a house the roof edge sheds water off the building. At a parapet the roof edge runs into a wall, and the wall is the part of this building that had to be kept dry.
Figure 1 — A parapet takes water from three directions, and each direction has its own piece of metal.
Why parapets leak
A parapet takes water from three directions. Rain lands on its top. Rain runs down its outer face. And the roof delivers everything it collects to the inner face, where the roofing stops. Brick and mortar absorb water, and a parapet is the coldest masonry on the building because it is exposed on both sides, so water that gets into it freezes there. The failures show up below as staining on the inside of the courtyard wall, well away from the roof.
The three pieces of metal

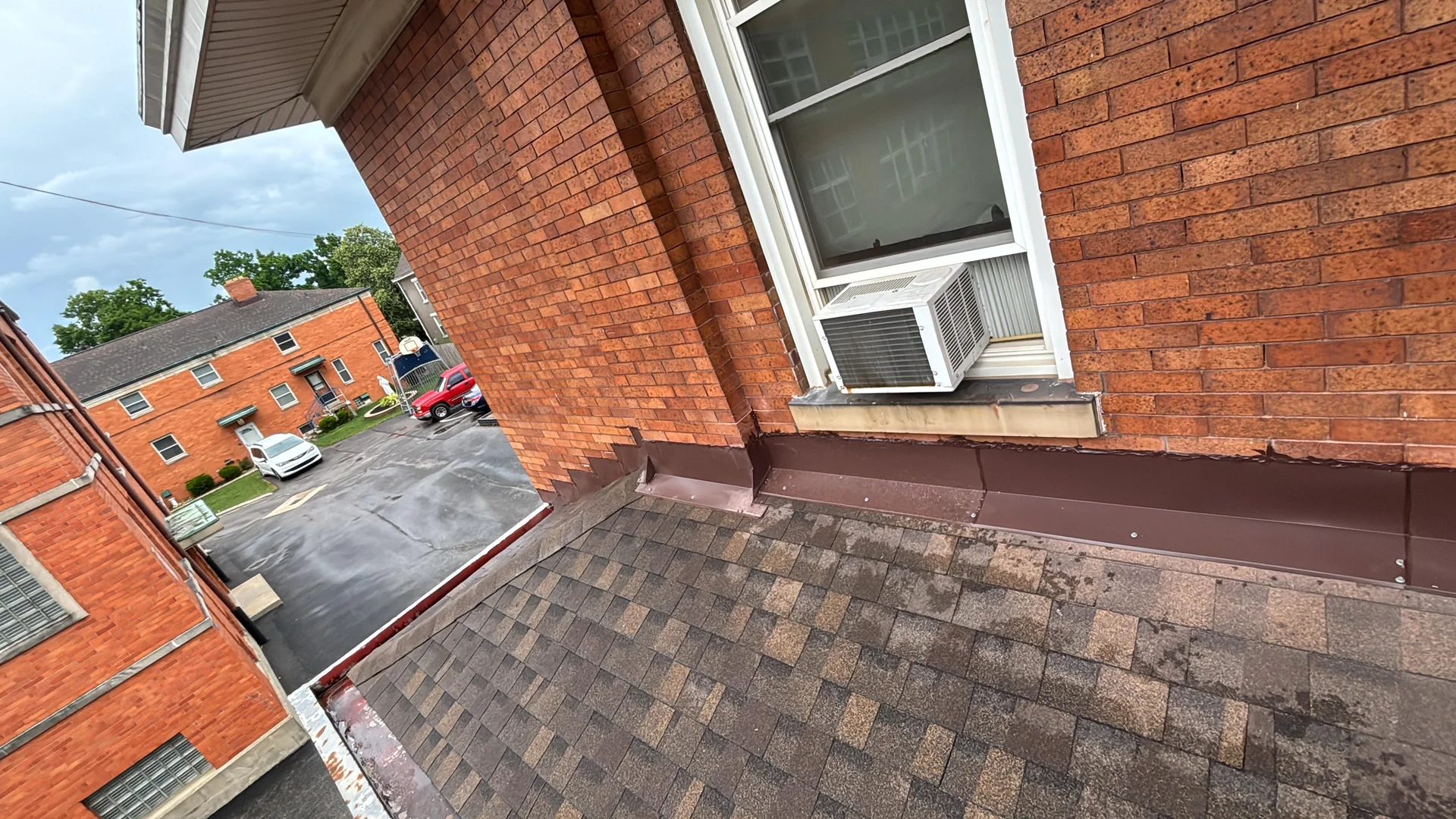

The new metal along the courtyard wall does three jobs. A coping covers the top of the wall, sloped toward the roof so water falls onto the roofing rather than down the face, and overhanging each side by about an inch with a drip so runoff clears the brick. Base flashing turns the roofing up the inner face of the wall, at least 8 inches, so water pushed against the wall by wind has nowhere to go but back down. Counter flashing is let into a mortar joint above that and bent down over the base flashing, throwing water running down the masonry out onto the roof. None of the three is nailed through its face into the brick, because a face nail is a hole in the one place the wall cannot afford one.
The rest of the roof
Behind the parapet the clay tile came off and a GAF Timberline HDZ system went on, with new flashing at the chimney and the same attention to the roof-to-wall lines. The tile had been sound to look at and finished as a working roof; what fails on a tile roof is the underlayment and the metal beneath it, and those were replaced rather than patched around again.
If a building has a parapet, the roof quote should describe the coping, the base flashing and the counter flashing separately. A parapet that gets only a bead of sealant along the roof line will be back on the list in a few winters.
